双节距传动链条

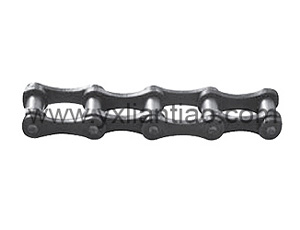

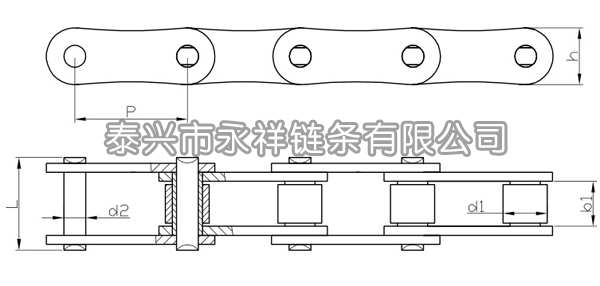

链号 DIN/ISO Chain NO. | 节距 P mm | 滚子 直径 d1 mm | 内节 内宽 b1 mm | 销轴 直径 d2 mm | 销轴 长度 L mm | 销轴 长度 Lc mm | 内板 高度 h mm | 极限 拉伸 载荷 KN | 每米 长重 Kg |
208A | 25.40 | 7.95 | 7.85 | 3.96 | 16.60 | 17.8 | 12.0 | 14.1 | 0.43 |
208B | 25.40 | 8.51 | 7.75 | 4.45 | 16.70 | 18.2 | 11.8 | 18.0 | 0.45 |
210A | 31.75 | 10.16 | 9.40 | 5.08 | 20.70 | 22.2 | 15.0 | 22.2 | 0.73 |
210B | 31.75 | 10.16 | 9.65 | 5.08 | 19.50 | 20.9 | 14.7 | 22.4 | 0.66 |
212A | 38.10 | 11.91 | 12.57 | 5.94 | 25.90 | 27.7 | 18.0 | 31.8 | 11.02 |
212B | 38.10 | 12.07 | 11.68 | 5.72 | 22.50 | 25.2 | 16.0 | 29.0 | 0.76 |
216A | 50.80 | 15.88 | 15.75 | 7.92 | 32.70 | 36.5 | 24.0 | 56.7 | 1.71 |
216B | 50.80 | 15.88 | 17.02 | 8.28 | 36.10 | 39.1 | 21.0 | 60.0 | 1.76 |
220A | 63.50 | 19.05 | 18.90 | 9.53 | 40.40 | 44.7 | 30.0 | 88.5 | 2.55 |
220B | 63.50 | 19.05 | 19.56 | 10.19 | 41.30 | 45.0 | 26.4 | 95.0 | 2.62 |
224A | 76.20 | 22.23 | 25.22 | 11.10 | 50.30 | 54.3 | 35.7 | 127 | 4.06 |
224B | 76.20 | 25.4 | 25.40 | 14.63 | 53.40 | 57.8 | 33.2 | 160 | 4.70 |
228B | 88.90 | 27.94 | 30.99 | 15.90 | 65.10 | 69.5 | 36.7 | 200 | 6.23 |
232B | 101.6 | 29.21 | 30.99 | 17.81 | 66.00 | 71.0 | 42.0 | 250 | 6.72 |
