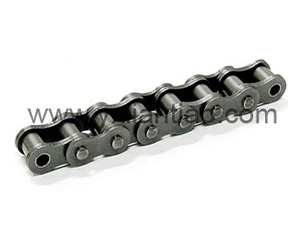

B系列短节距精密滚子链条

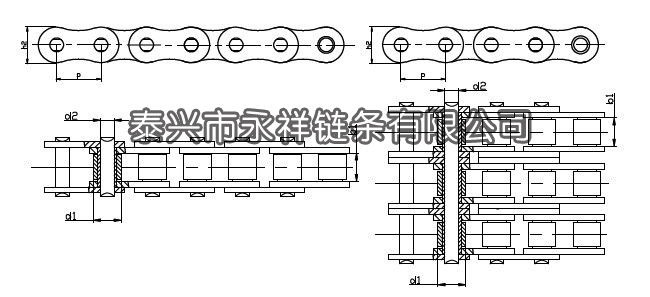

链号 DIN/ISO Chain NO. | 节距 P mm | 滚子 直径 d1 mm | 内节 内宽 b1 mm | 销轴 直径 d2 mm | 内板 高度 h2 mm | 销轴 长度 L mm | 排距 Pt mm | 极限 拉伸 载荷 KN | 每米 长重 Kg |
05B-1 | 8.00 | 5.00 | 3.00 | 2.31 | 7.10 | 8.90 | 5.64 | 5.00 | 0.20 |
06B-1 | 9.525 | 6.35 | 5.72 | 3.28 | 8.20 | 14.10 | 10.24 | 9.00 | 0.41 |
08B-1 | 12.70 | 8.51 | 7.75 | 4.45 | 11.80 | 18.20 | 13.92 | 18.00 | 0.69 |
10B-1 | 15.875 | 10.16 | 9.65 | 5.08 | 14.70 | 20.90 | 16.59 | 22.40 | 0.93 |
12B-1 | 19.05 | 12.07 | 11.68 | 5.72 | 16.00 | 24.20 | 19.46 | 29.00 | 1.15 |
16B-1 | 25.40 | 15.88 | 17.02 | 8.28 | 21.00 | 37.40 | 31.88 | 60.00 | 2.71 |
20B-1 | 31.75 | 19.05 | 19.56 | 10.19 | 26.40 | 45.00 | 36.45 | 95.00 | 3.70 |
24B-1 | 38.10 | 25.40 | 25.40 | 14.63 | 33.20 | 57.80 | 48.36 | 160.0 | 7.10 |
28B-1 | 44.45 | 27.94 | 30.99 | 15.90 | 36.70 | 69.50 | 59.56 | 200.0 | 8.50 |
32B-1 | 50.80 | 29.21 | 30.99 | 17.81 | 42.00 | 71.00 | 58.55 | 250.0 | 10.25 |
40B-1 | 63.50 | 39.37 | 38.10 | 22.89 | 52.96 | 89.20 | 72.29 | 355.0 | 16.35 |
48B-1 | 76.20 | 48.26 | 45.72 | 29.24 | 63.80 | 107.0 | 91.21 | 560.0 | 25.0 |
56B-1 | 88.90 | 53.98 | 53.34 | 34.32 | 77.80 | 123.0 | 106.6 | 850.0 | 35.78 |
64B-1 | 101.6 | 63.50 | 60.96 | 39.40 | 90.17 | 138.5 | 119.89 | 112.0 | 46.0 |
72B-1 | 114.3 | 72.39 | 68.58 | 44.48 | 103.60 | 156.4 | 136.27 | 1400 | 60.80 |
