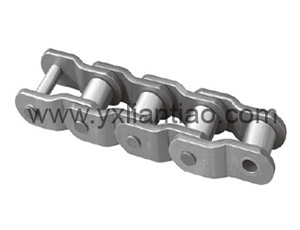

重载弯板滚子链条

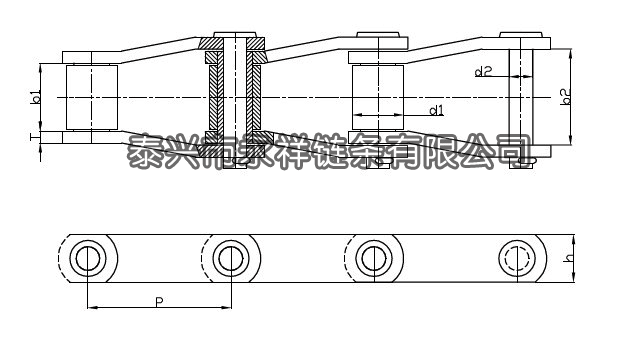

链号 DIN/ISO Chain NO. | 节距 P mm | 滚子 直径 d1 mm | 窄端 内宽 b1 mm | 销轴 直径 d2 mm | 宽端 内宽 b2 mm | 链板 厚度 T mm | 链板 高度 h mm | 极限 抗拉 载荷 KN |
2010 | 63.5 | 31.75 | 38.1 | 15.9 | 54.51 | 7.9 | 47.8 | 250 |
2512 | 77.9 | 41.28 | 39.6 | 19.08 | 59.26 | 9.7 | 60.5 | 240 |
2814 | 88.9 | 44.45 | 38.1 | 22.25 | 64.14 | 12.7 | 60.5 | 470 |
3315 | 103.45 | 45.24 | 49.3 | 23.85 | 78.41 | 14.2 | 63.5 | 550 |
3618 | 114.3 | 57.15 | 52.3 | 27.97 | 81.58 | 14.2 | 79.2 | 760 |
4020 | 127 | 63.5 | 69.9 | 31.78 | 102.51 | 15.7 | 91.9 | 990 |
4824 | 152.4 | 76.2 | 76.2 | 38.13 | 115.21 | 19 | 104.6 | 1400 |
5628 | 177.8 | 88.9 | 82.6 | 44.48 | 129.91 | 22.4 | 133.4 | 1890 |
