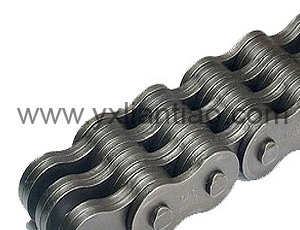

LH型板式链条
链号 Chain NO. | 节距 P mm | 链板 组合 | 链板 高度 h mm | 链板 厚度 T mm | 销轴 直径 d2 mm | 销轴 长度 L mm | 极限 拉伸 载荷 KN | 每米 长重 kg/m |
LH0822 | 12.7 | 2×2 | 12.07 | 2.08 | 5.09 | 11.1 | 22.2 | 0.7 |
LH0844 | 4×4 | 19.5 | 44.5 | 1.3 | ||||
LH0866 | 6×6 | 28 | 66.7 | 1.9 | ||||
LH1022 | 15.875 | 2×2 | 15.09 | 2.44 | 5.96 | 13 | 33.4 | 0.9 |
LH1044 | 4×4 | 22.8 | 66.7 | 1.8 | ||||
LH1066 | 6×6 | 32.7 | 100.1 | 2.7 | ||||
LH1222 | 19.05 | 2×2 | 18.11 | 3.30 | 7.94 | 17.4 | 48.9 | 1.5 |
LH1244 | 4×4 | 30.8 | 97.9 | 2.9 | ||||
LH1266 | 6×6 | 44.2 | 146.8 | 4.3 | ||||
LH1622 | 25.4 | 2×2 | 24.13 | 4.09 | 9.54 | 21.4 | 84.5 | 2.2 |
LH1644 | 4×4 | 37.9 | 169.0 | 4.3 | ||||
LH1666 | 6×6 | 54.5 | 253.6 | 6.5 | ||||
LH2022 | 31.75 | 2×2 | 30.18 | 4.9 | 11.11 | 25.4 | 115.6 | 3.4 |
LH2044 | 4×4 | 45.2 | 231.3 | 6.9 | ||||
LH2066 | 6×6 | 65.0 | 347 | 10.3 | ||||
LH2422 | 38.1 | 2×2 | 36.20 | 5.77 | 12.71 | 29.6 | 151.2 | 4.6 |
LH2444 | 4×4 | 52.9 | 302.5 | 9.3 | ||||
LH2466 | 6×6 | 76.2 | 453.7 | 14 | ||||
LH2822 | 44.45 | 2×2 | 42.24 | 6.55 | 14.29 | 33.6 | 191.3 | 6.1 |
LH2844 | 4×4 | 60 | 382.6 | 12.2 | ||||
LH2866 | 6×6 | 86.4 | 578.3 | 18.2 | ||||
LH3222 | 50.8 | 2×2 | 48.26 | 7.52 | 17.46 | 39 | 289 | 8.0 |
LH3244 | 4×4 | 69.3 | 573.8 | 16.0 | ||||
LH3266 | 6×6 | 99.6 | 857.4 | 24.0 | ||||
LH4022 | 63.5 | 2×2 | 60.33 | 9.91 | 23.81 | 51.8 | 433.7 | 15.8 |
LH4044 | 4×4 | 91.6 | 867.4 | 31.6 | ||||
LH4066 | 6×6 | 131.4 | 1301 | 47.4 |
