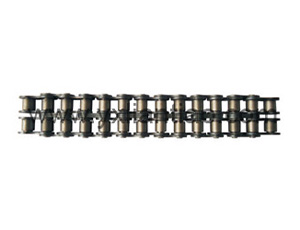

不锈钢滚子链条

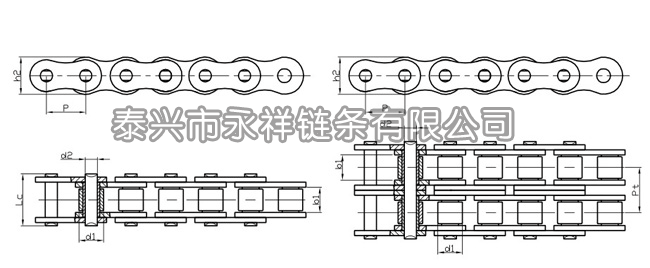

链号 DIN/ISO Chain NO. | 节距 P mm | 滚子 直径 d1 mm | 内节 内宽 b1 mm | 销轴 直径 d2 mm | 内链板 高度 h2 mm | 销轴 长度 Lc mm | 排距 Pt mm |
SS08A | 12.70 | 7.95 | 7.85 | 3.96 | 12.00 | 17.80 | 14.38 |
SS10A | 15.875 | 10.16 | 9.40 | 5.08 | 15.09 | 22.20 | 18.11 |
SS12A | 19.05 | 11.91 | 12.57 | 5.94 | 18.00 | 27.70 | 22.78 |
SS16A | 25.40 | 15.88 | 15.75 | 7.92 | 24.00 | 35.00 | 29.29 |
SS20A | 31.75 | 19.05 | 18.90 | 9.53 | 30.00 | 44.70 | 35.76 |
SS24A | 38.10 | 22.23 | 25.22 | 11.10 | 35.70 | 54.30 | 45.44 |
SS28A | 44.45 | 25.40 | 25.22 | 12.70 | 41.00 | 59.00 | 48.87 |
SS32A | 50.80 | 28.58 | 31.55 | 14.27 | 47.80 | 69.60 | 58.55 |
SS36A | 57.15 | 35.71 | 35.48 | 17.46 | 53.60 | 78.60 | 65.84 |
SS40A | 63.50 | 39.68 | 37.85 | 19.85 | 60.00 | 87.20 | 71.55 |
SS48A | 76.20 | 47.63 | 47.35 | 23.81 | 72.39 | 103.00 | 87.83 |
